ACM SIGGRAPH 2025, Vancouver, BC, Canada

Inverse Design of Discrete Interlocking Materials with Desired Mechanical Behavior

Pengbin Tang
ETH Zürich
Bernhard Thomaszewski
ETH Zürich
Stelian Coros
ETH Zürich
Bernd Bickel
ETH Zürich

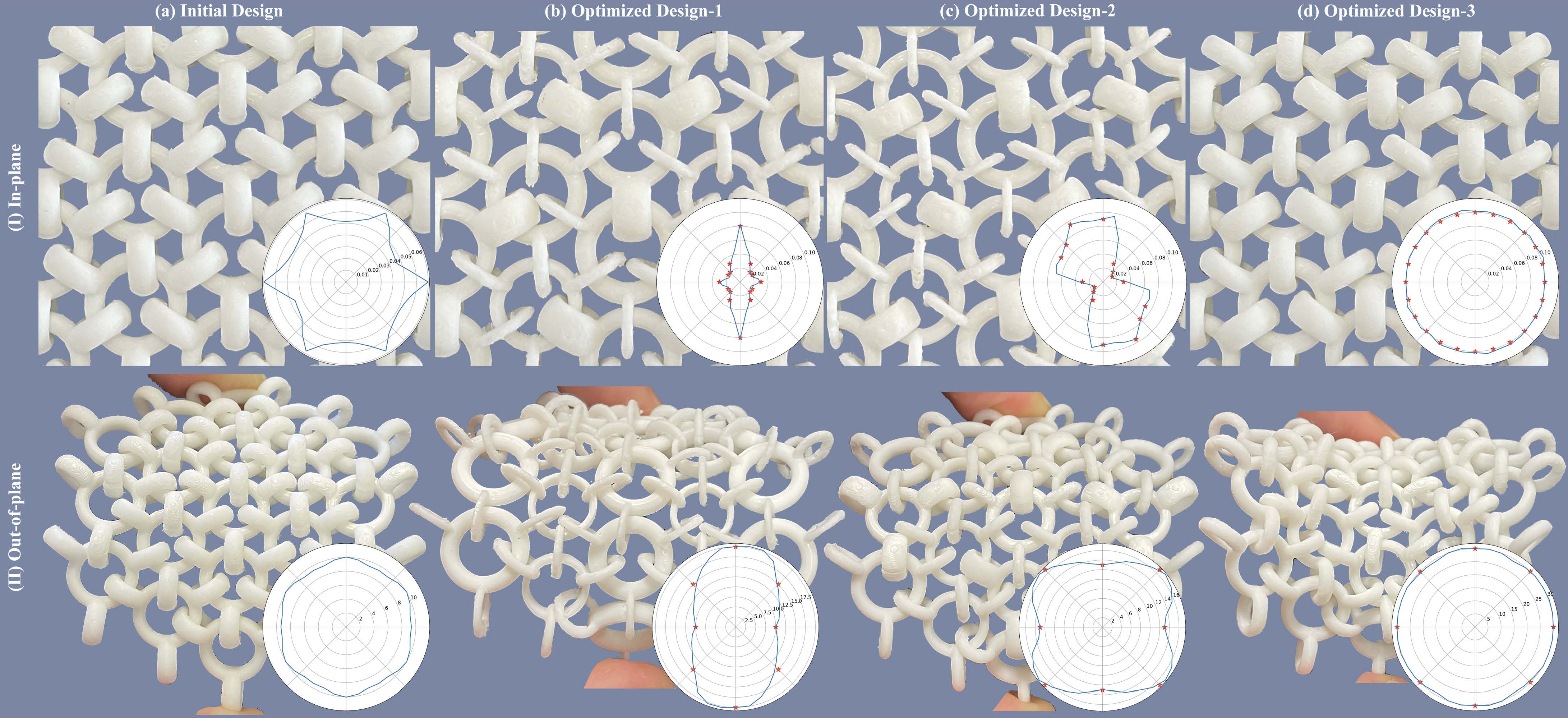

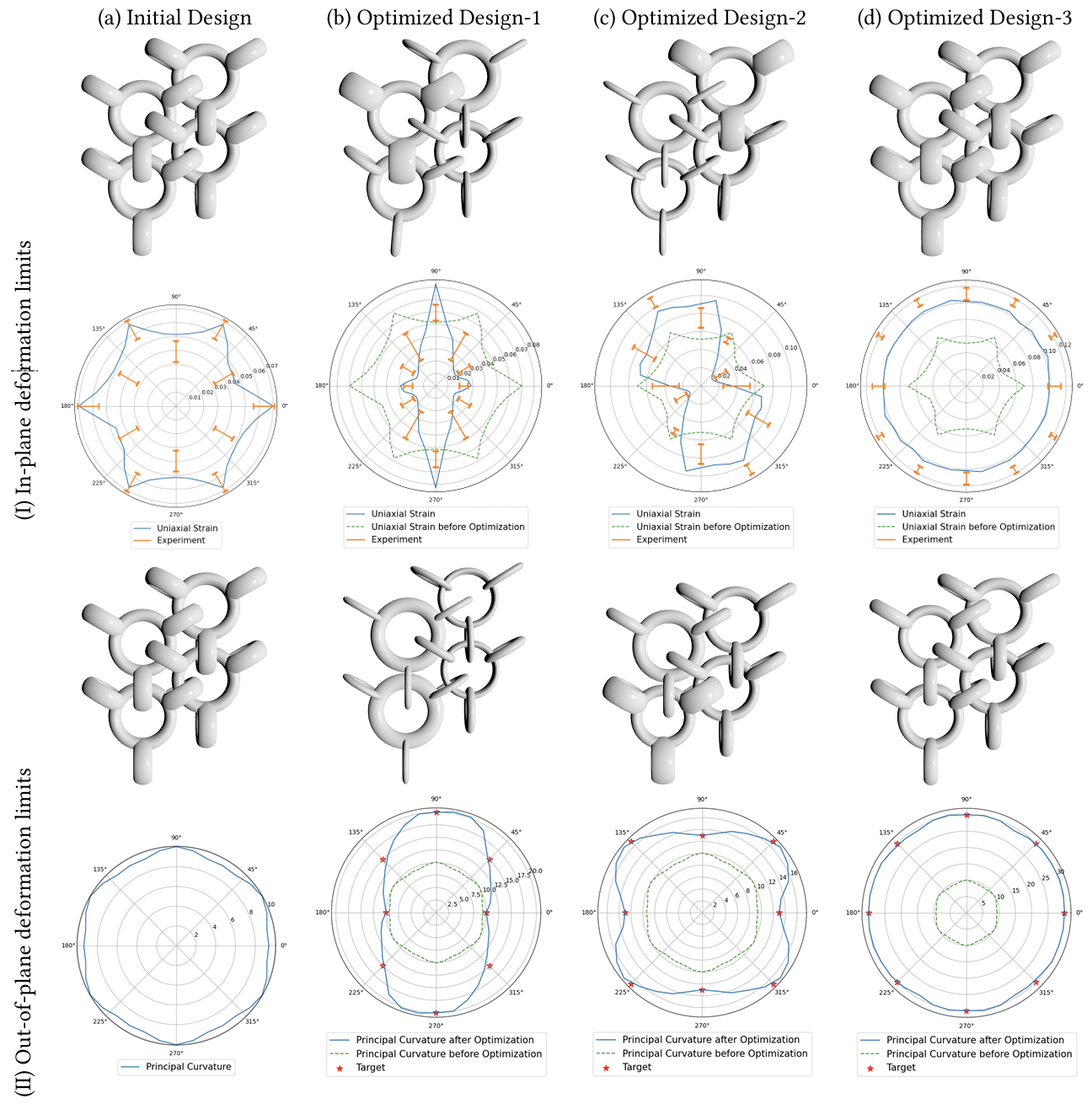

Fig. 1. Our method enables optimization-driven design of Discrete Interlocking Materials with desired mechanical behavior. For this threefold symmetric chainmail, both in- and out-of-plane mechanical properties of the initial homogeneous designs (I-a, II-a) exhibit threefold symmetric uniaxial deformation limit profiles. Our approach automatically finds shape parameters for each interlocking element that lead to diverse desired mechanical properties (red dots).

Abstract

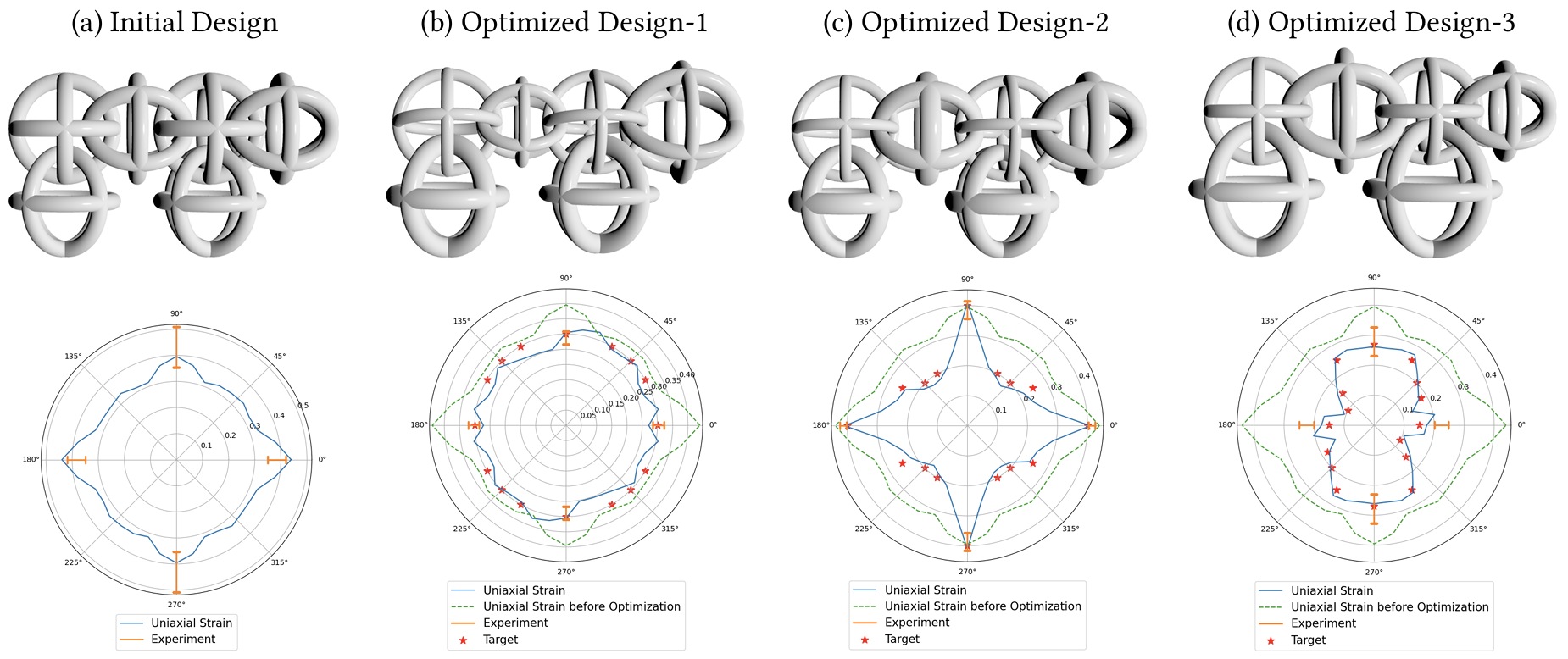

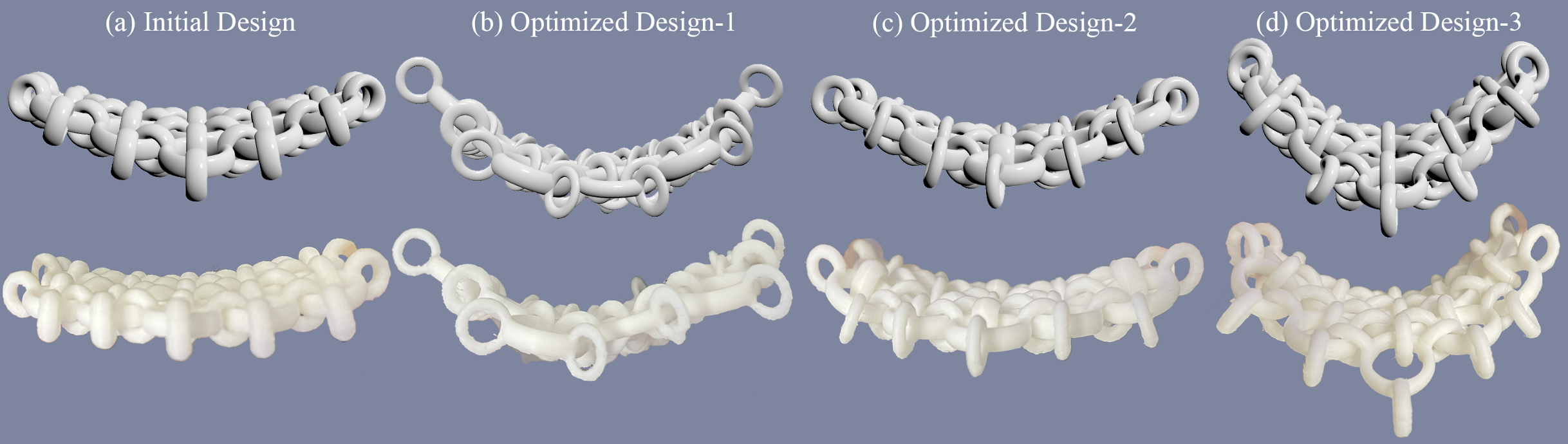

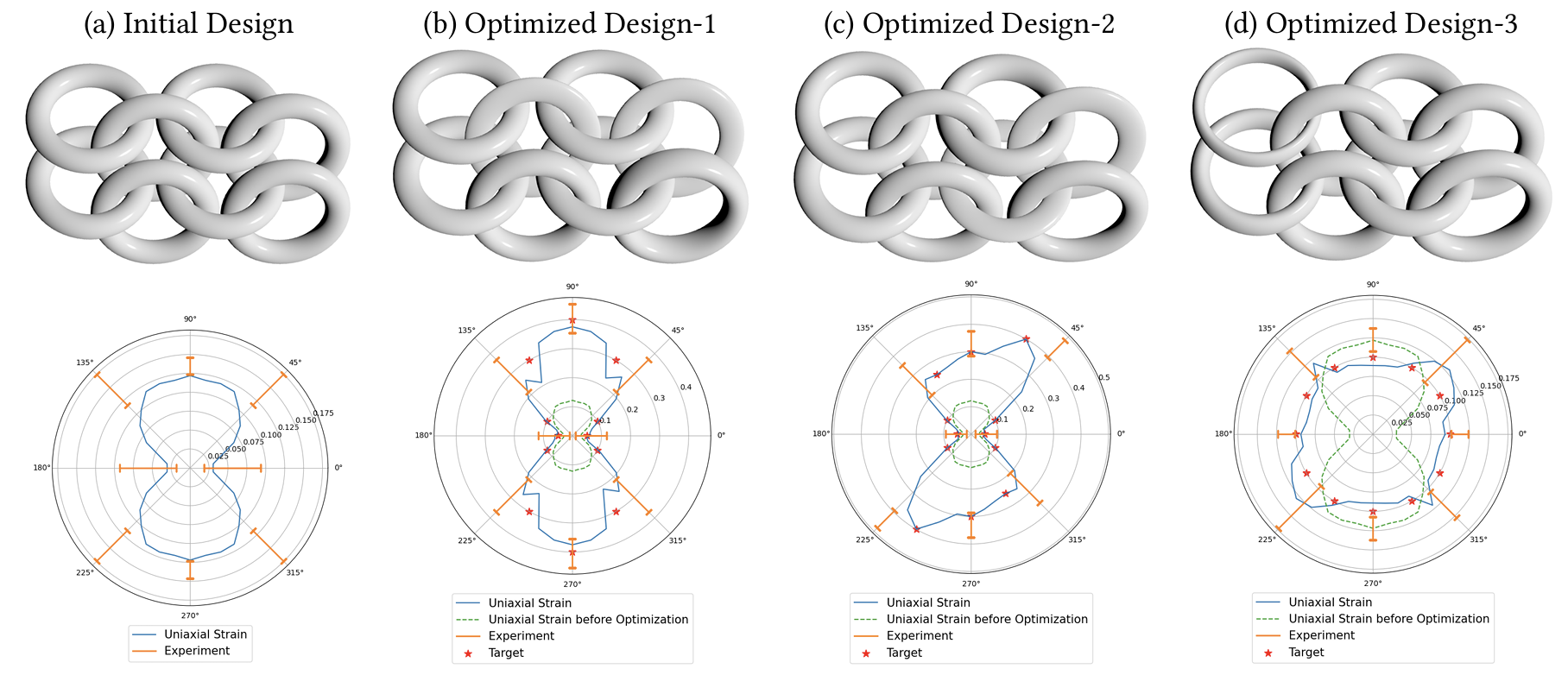

We present a computational approach for designing Discrete Interlocking Materials (DIMs) with desired mechanical properties. Unlike conventional elastic materials, DIMs are kinematic materials governed by internal contacts among elements. These contacts induce anisotropic deformation limits that depend on the shape and topology of the elements. To enable gradient-based design optimization of DIMs with desired deformation limits, we introduce an implicit representation of interlocking elements based on unions of tori. Using this low-dimensional representation, we simulate DIMs with smoothly evolving contacts, allowing us to predict changes in deformation limits as a function of shape parameters. With this toolset in hand, we optimize for element shape parameters to design heterogeneous DIMs that best approximate prescribed limits. We demonstrate the effectiveness of our method by designing discrete interlocking materials with diverse limit profiles for in- and out-of-plane deformation and validate our method on fabricated physical prototypes.

Materials


Paper (12.9 MB)
Supplemental Materials (450 KB)
Video (Youtube)

Acknowledgments

The authors thank anonymous reviewers for their valuable feedback. We are also grateful to Rafael Bischof for proofreading the paper. This work was supported by the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation program (grant agreement No. 866480), and the Swiss National Science Foundation through SNF project grant 200021_200644.
